Product Overview

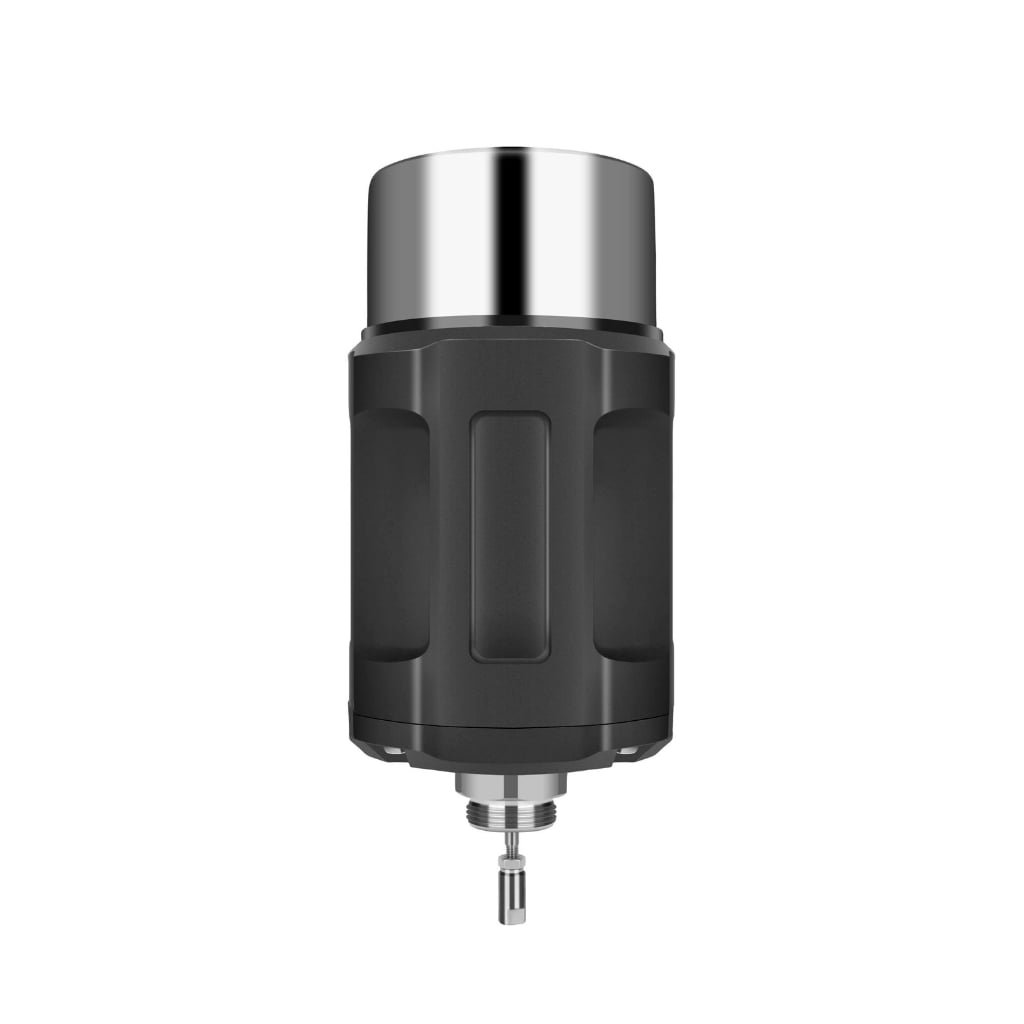

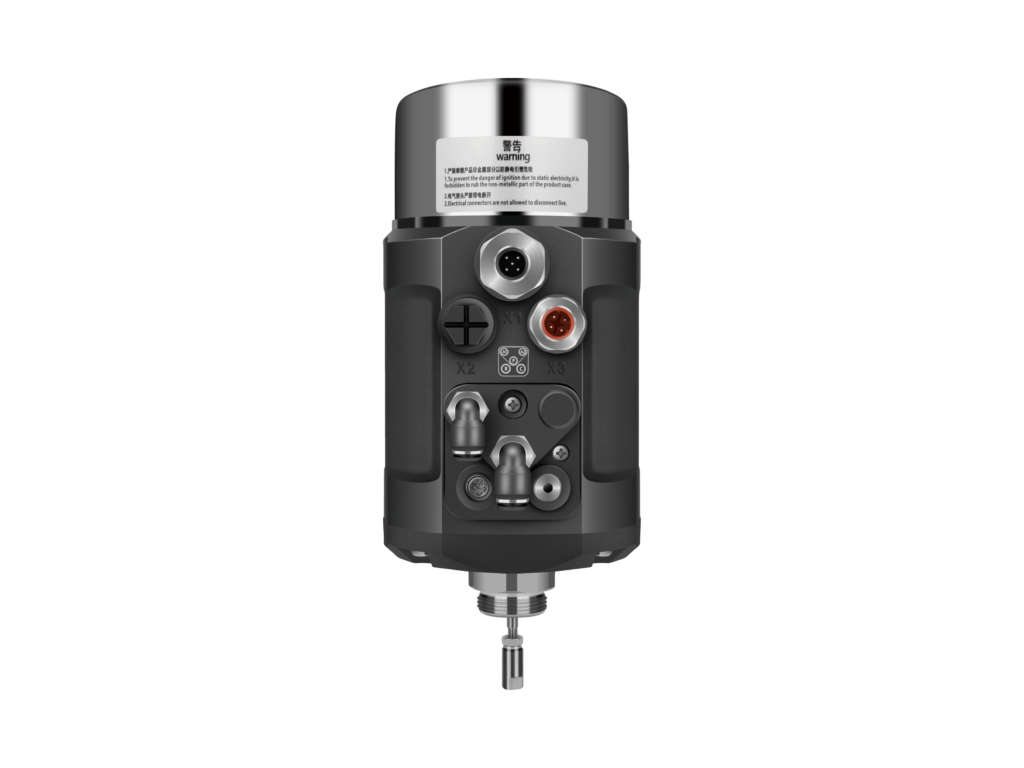

The POWERFLOW 1600 smart valve positioner is designed for demanding industrial control applications requiring greater configuration flexibility, precise positioning, and enhanced safety functions.
It accepts a 4–20 mA input signal and provides stable, accurate control of pneumatic valves with fast response and reliable repeatability.
Compared with standard models, the 1600 offers extended configuration features such as safety positioning, stroke limiting, and advanced parameter adjustment.
Typical Applications
The POWERFLOW 1600 is suitable for demanding process-control applications across a wide range of industries, including:
- Chemical processing plants
- Power generation systems
- Oil & gas facilities
- Water treatment automation
- OEM control-valve packages
- Process industries with advanced control requirements
Key Advantages
- Precise and stable valve positioning
- Fast response and reliable repeatability
- Extended parameter configuration
- Safety-positioning functionality
- Adjustable stroke limiting
- Flexible installation options
Advanced Control Functions
The POWERFLOW 1600 provides enhanced configuration capabilities for applications requiring more than standard valve-positioning functions.
Its adjustable parameters allow the positioner to be configured according to the actuator, valve characteristics, process conditions, and required safety behavior.
Safety Positioning
Safety-positioning functionality allows the valve to move toward a predefined position under specified operating or fault conditions, depending on the selected configuration and application requirements.
Stroke Limiting
Adjustable stroke limiting allows the usable valve-travel range to be restricted when full valve movement is not required. This can support process optimization and help protect associated equipment.
Advanced Parameter Adjustment
Extended parameter settings provide greater flexibility during commissioning and allow the positioner to be adapted to different control strategies and operating conditions.
Optional Configurations
- Single-acting or double-acting operation
- Rotary or linear actuator compatibility
- Optional 4–20 mA feedback output
- NAMUR mounting
- Remote-mounted version
- Multiple air-connection thread options
Flexible Installation

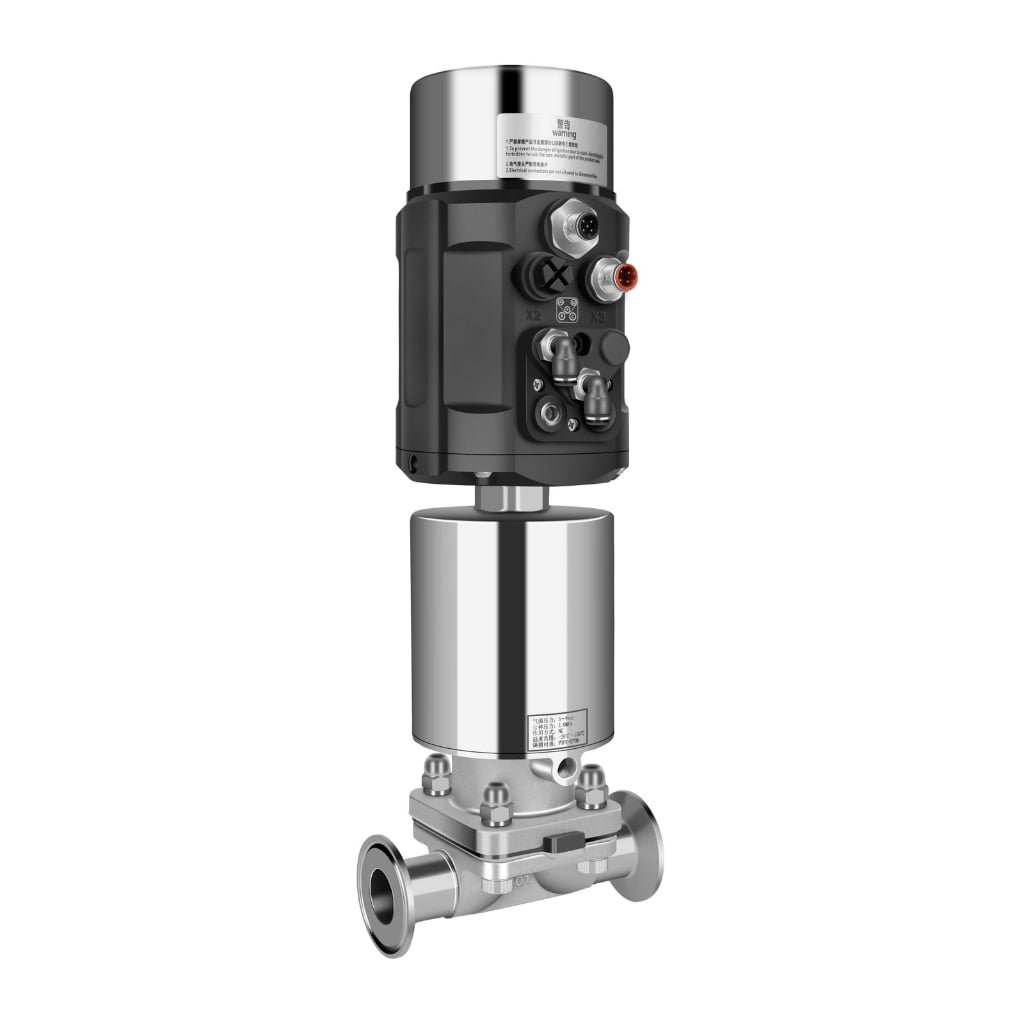

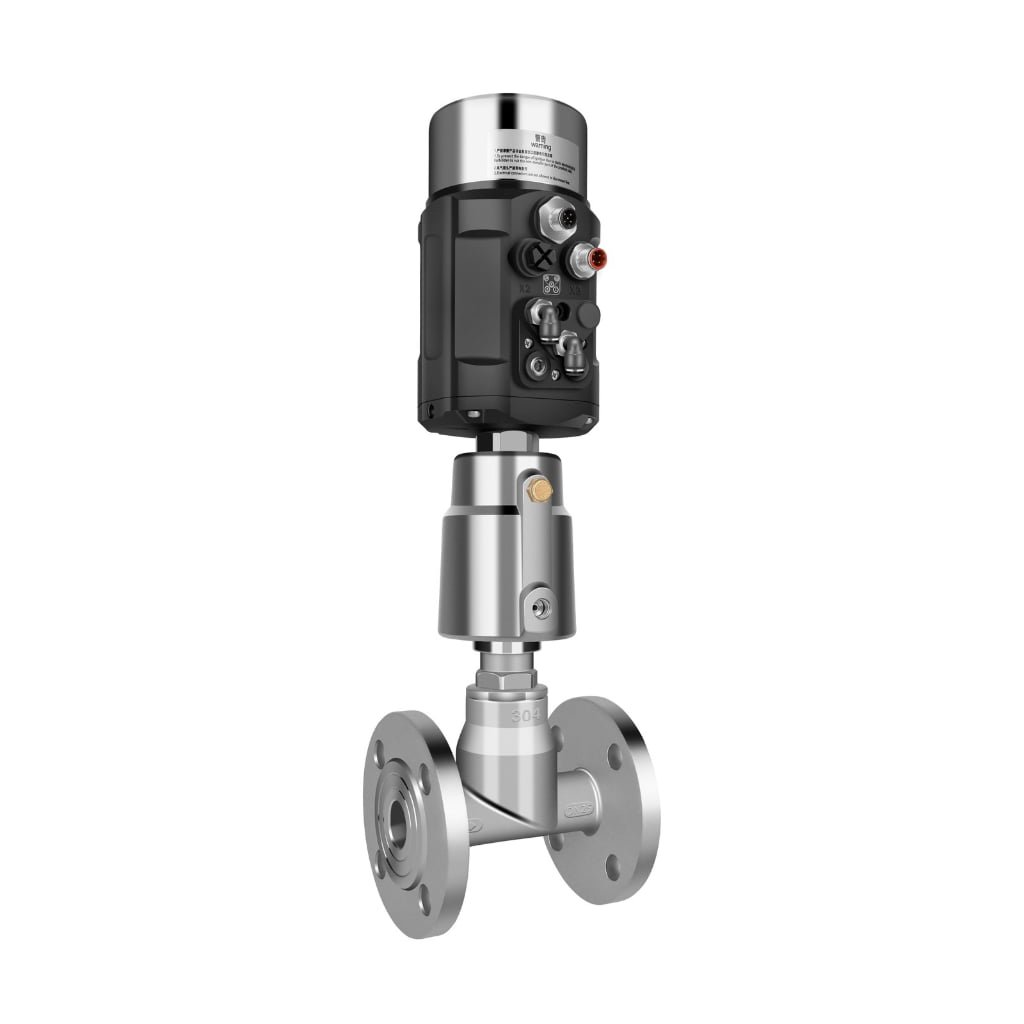

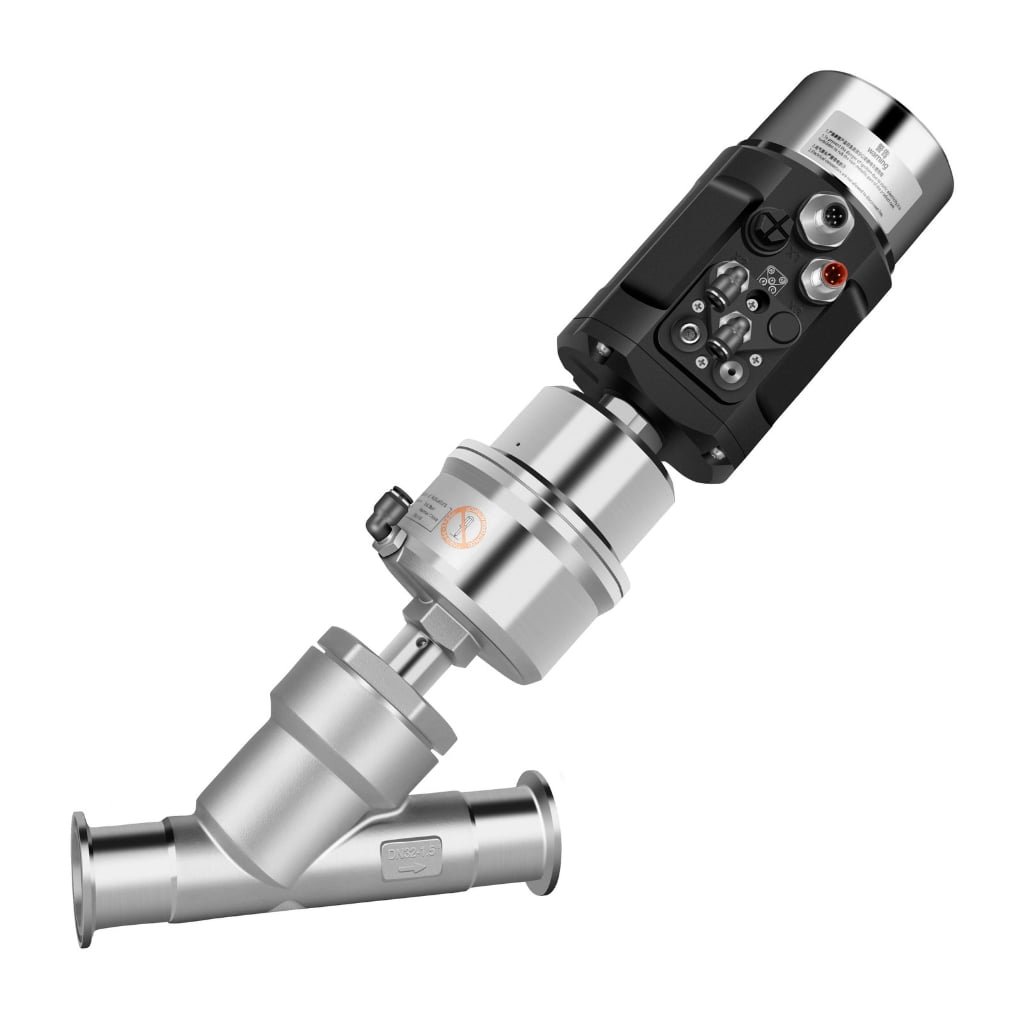

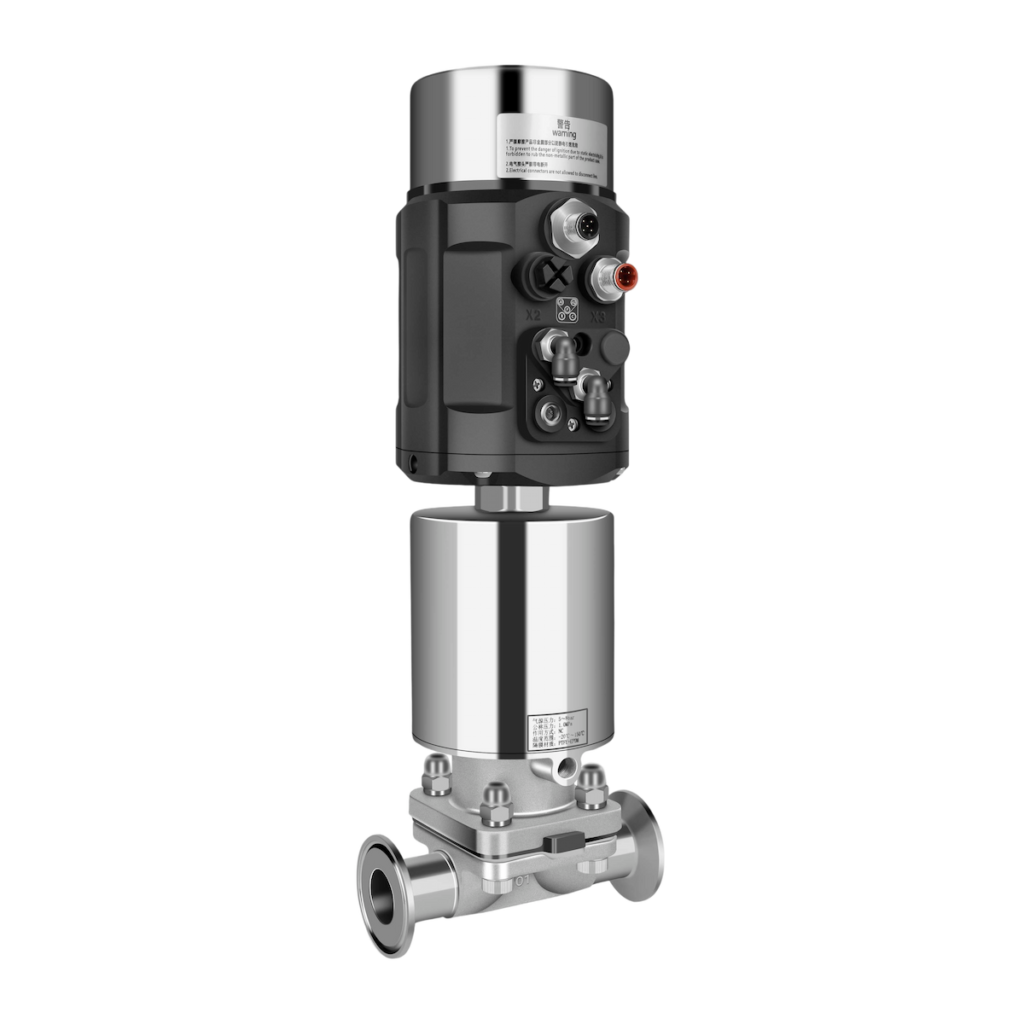

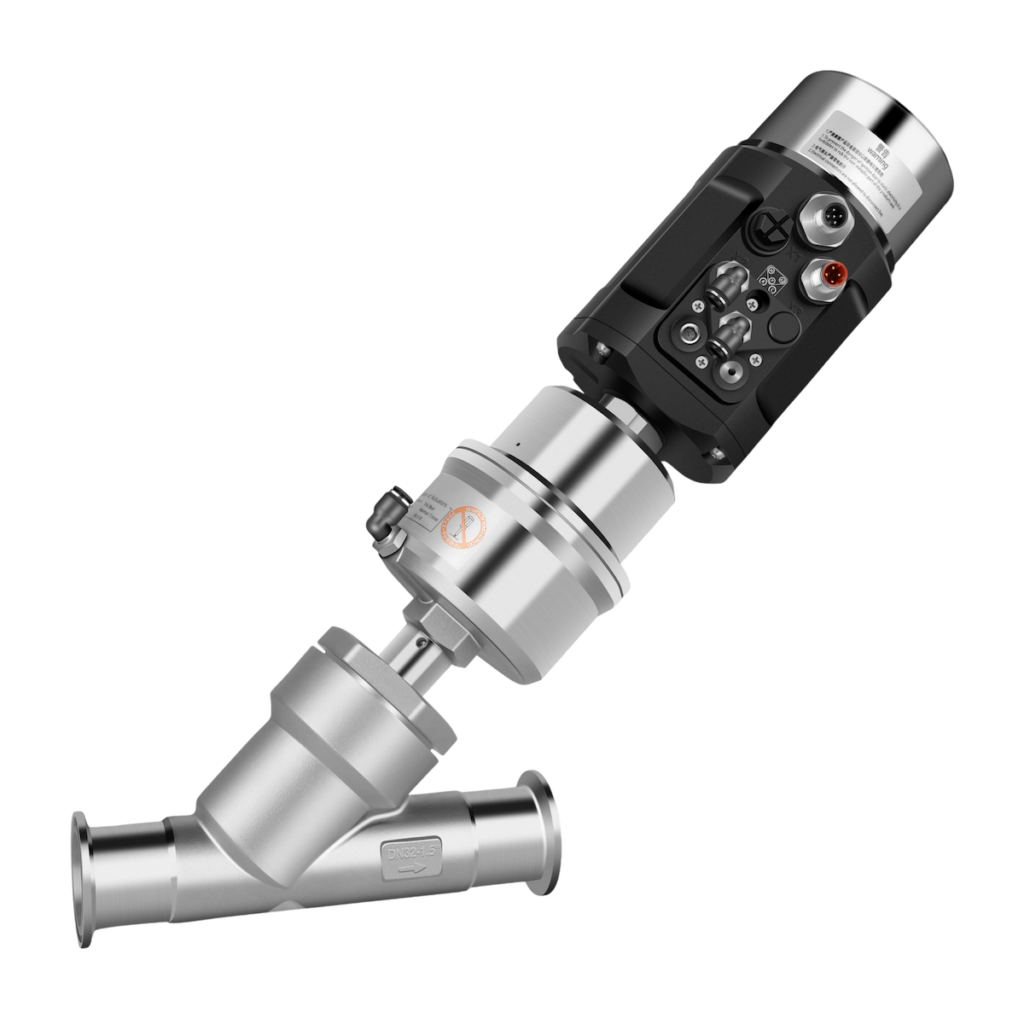

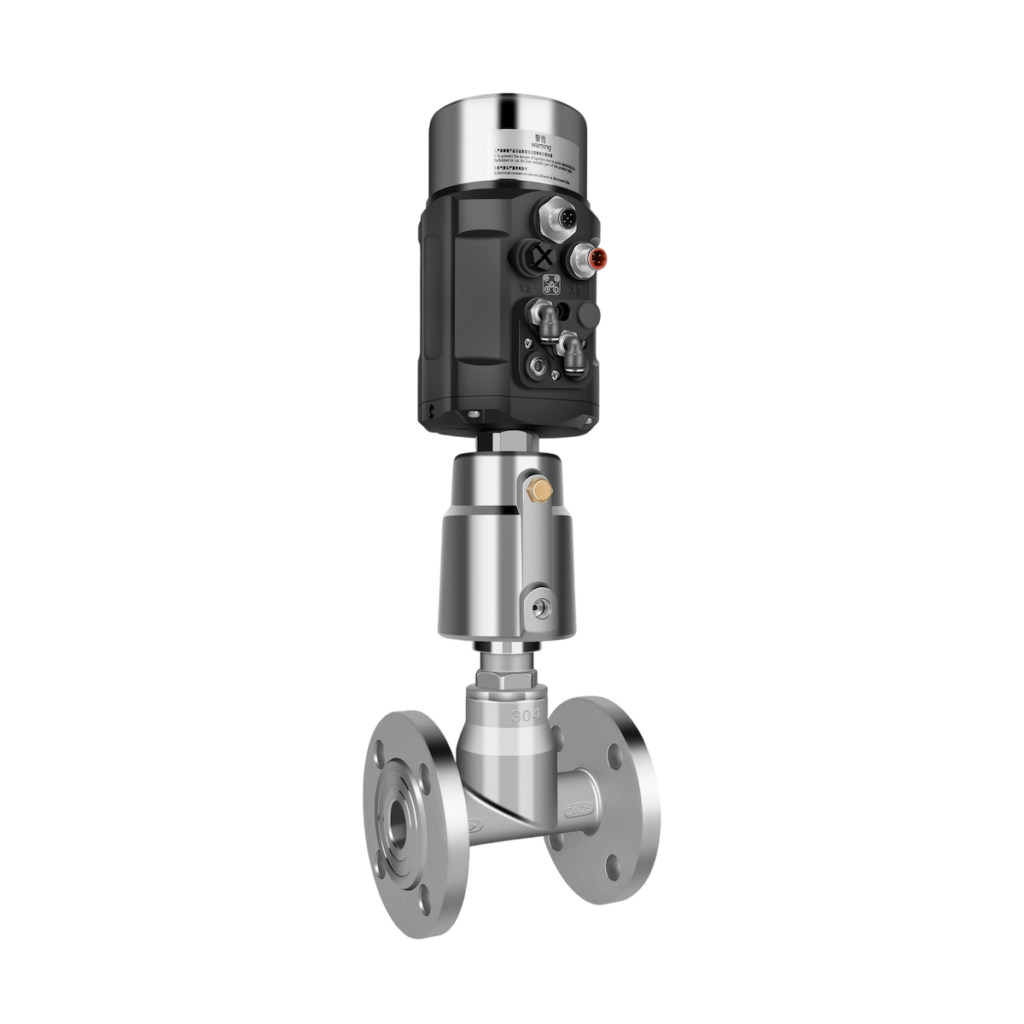

The POWERFLOW 1600 can be configured for both linear and rotary pneumatic actuators. Multiple mounting and air-connection options allow it to support a broad range of control-valve packages and installation requirements.
An optional remote-mounted version can provide additional flexibility for applications involving limited installation space, vibration, difficult access, or demanding environmental conditions.
Why Choose POWERFLOW?
POWERFLOW provides intelligent valve positioners and technical support for industrial process-automation projects.
- Advanced smart-control functions
- Reliable factory quality
- Fast delivery support
- OEM customization available
- Responsive technical assistance
Need Help Selecting a Configuration?
Selecting the correct POWERFLOW 1600 configuration depends on the actuator type, action mode, mounting method, input and feedback signals, safety requirements, air connections, and process conditions.
Contact POWERFLOW for product selection assistance, technical consultation, quotations, and OEM configuration support.
