IP6000d Flameproof Smart Valve Positioner

Model IP6000d

IP6000d flameproof smart valve positioner for pneumatic control valves, featuring Ex db hazardous area protection, HART communication, precise 4-20mA control and reliable industrial performance.

Communications

4-20mA HART

Mounting

NAMUR Mounted Remote Mounted

Environment

Corrosion Resistant Explosion Proof High Vibration Outdoor IP69K

Valve Compatibility

Double Acting Linear Actuator Rotary Actuator Single Acting

Replacement For Reliable replacement solution for conventional explosion proof valve positioners requiring modern smart control, HART communication and stable field performance.

Request a Quote

Flameproof Hazardous Area Design

Certified Ex db enclosure for safe use in Zone 1 and Zone 2 gas hazardous areas.

IP69K Rugged Protection

Reliable operation in wet, dusty and harsh industrial environments.

HART Communication

Supports remote parameter setting, diagnostics and maintenance integration.

Precise Valve Positioning

Stable 4-20mA control with excellent repeatability and fast response.

Advanced Control Functions

Includes split range control, partial stroke test and configurable characteristics.

Industrial Reliability

Heavy-duty aluminum housing designed for long-term field operation.

Parameter	Value	Unit / Note
Input Signal	4-20	mA DC
Power Supply	15-24	V DC
Minimum Current	3.8	mA
Supply Pressure	0.14-0.7	MPa
Protection Class	IP69K	Standard
Explosion Rating	Ex db IIC T6 Gb	Gas Area
Dust Rating	Ex tb IIIC 85°C Db	Dust Area
Linearity	≤0.5	%
Hysteresis	≤0.5	%
Ambient Temperature	-20 to 60	°C
Low Temp Version	-40 to 60	°C Optional
Weight	4.4	kg
Feedback Output	4-20	mA Optional
Communication	HART	Supported

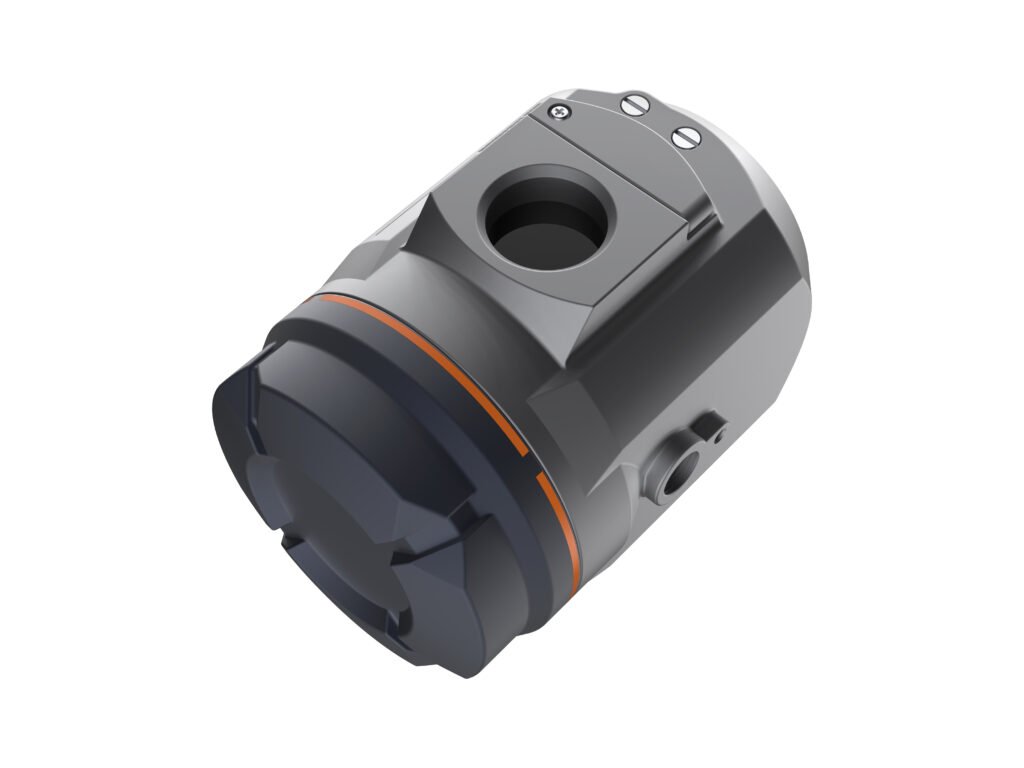

IP6000d Flameproof Smart Valve Positioner

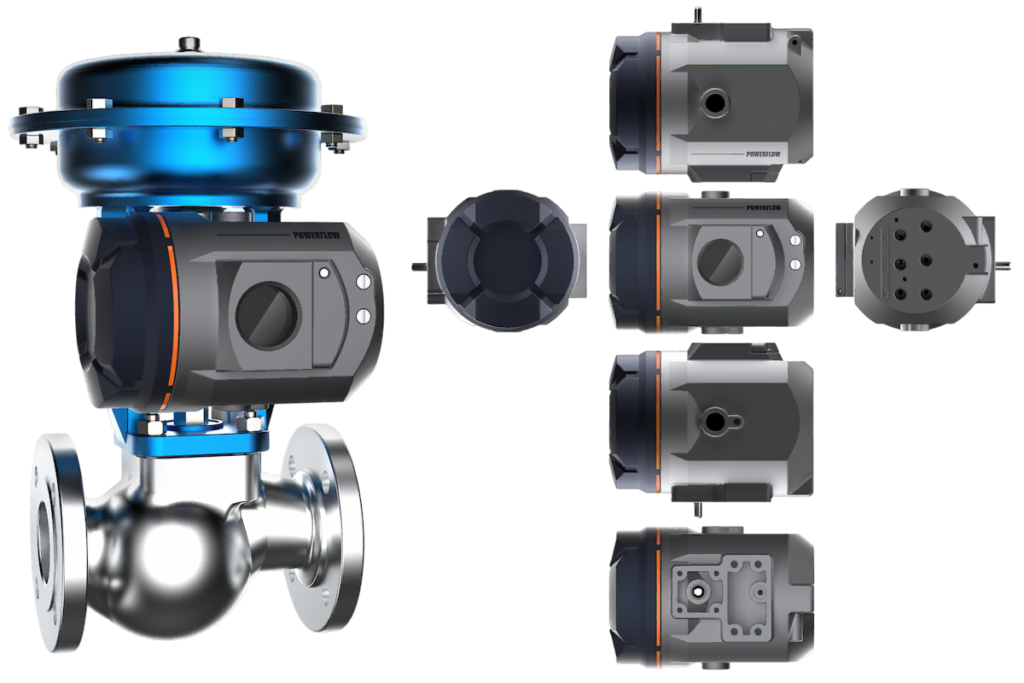

The POWERFLOW IP6000d smart valve positioner is designed for pneumatic control valves installed in hazardous industrial environments.

With certified flameproof Ex db protection and IP69K enclosure rating, it provides reliable operation in gas and dust explosion risk areas.

The unit accepts 4-20mA control signals and delivers accurate valve positioning with fast response and excellent repeatability.

IP6000d supports HART communication for remote setup, diagnostics and maintenance management.

Advanced functions such as split range control, partial stroke testing and configurable valve characteristics make it suitable for demanding process automation systems.

Typical Applications

• Oil & gas facilities
• Chemical processing plants
• Refineries
• Power generation systems
• Mining operations
• Marine fuel systems

Key Advantages

• Flameproof hazardous area design
• IP69K rugged enclosure
• HART communication supported
• Precise smart valve control
• Advanced diagnostic functions
• Durable aluminum housing
